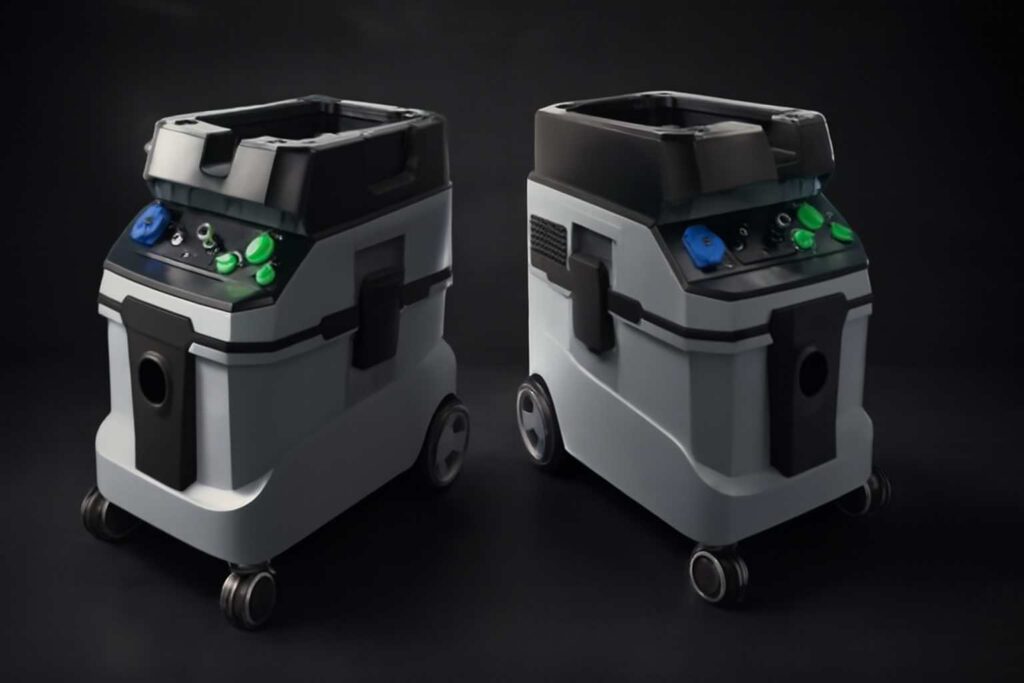

JF42 mobile industrial dust extractor
Dust is hazardous to health. Dust generated by manually operated tools for grinding, polishing and cutting is not more than 1m away from the respiratory system of the operator, which is directly hazardous to the health of the personnel. Generally, non-automatic tools have high demands on the lightness, convenience and intelligence of vacuum cleaners. The JF42 mobile industrial dust extractor is an innovative, cleverly designed, lightweight, fully-automatic and intelligent vacuum cleaner that specializes in dust generated by “non-automatic tooling”, and is not only convenient to use, but also highly efficient in filtration, and has a fully-automatic filter cleaning function.
Technical parameters:
Rated voltage/frequency | 220~240V 50/60Hz | Container volume | 42L |
Rated power | 1200W | Power cable length | 5M |
Maximum load on external socket | 600W | Product size | About 597x388x588mm |
Maximum airflow | 34L/M | Package size | About 615x415x655mm |
Maximum vacuum | 18KPa | Net weight | About 16kg |
Protection level | IP24 | Gorss weight(include package) | About 18.5kg |
Noise | 80±2dB(A) | Package | Carton packaging (not recycled) |
Flexible and lightweight – dust-free operation
Changing the way we work: JF42, your mobile industrial duxt extractor!
- Suitable for sanding tools vacuuming
polishing triplexer
/multi-purpose machines
Electric Circular Grinder
Electric Square Grinder
Pneumatic Circular Grinder
Pneumatic Square Grinder
Sheet Metal Grinder etc.
- Suitable for vacuuming
cutting tools
Curve Saw
Orbital Circular Saw
Orbital Li-Ion Saw Table Saw etc.
- Vacuuming for other applications
Vacuuming for woodworking (mortise and tenon) slotting machines Drill holes Vacuuming for cleaning / sweeping

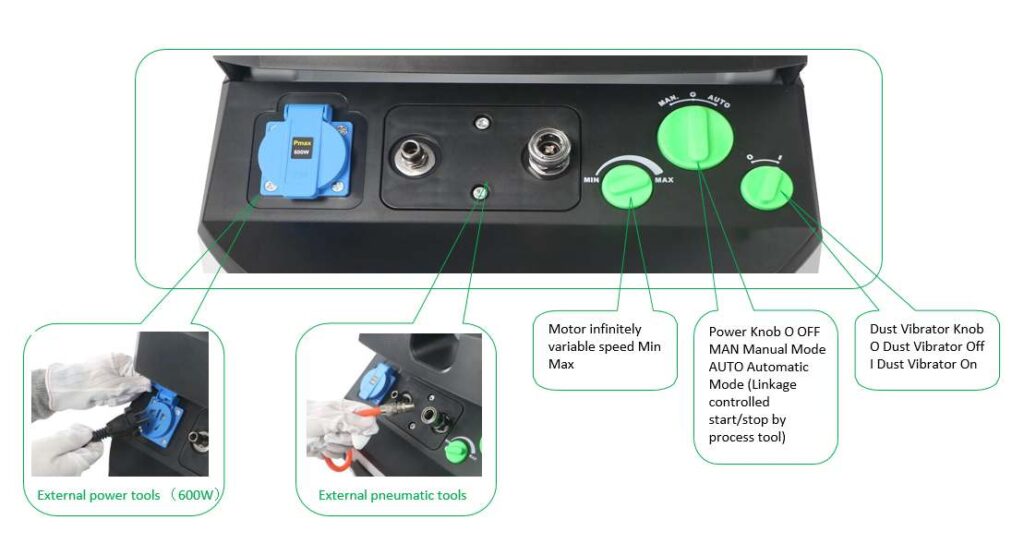

Intelligent control panel
■Standard: external socket (600W) module and pneumatic module No need for optional In AUTO mode, the vacuum cleaner and tools can be linked together, no need to manually control the vacuum cleaner to start and stop, the vacuum cleaner will follow the start of the tools to start and stop, which is not only intelligent, but also energy saving. Dust vibration knob, in I gear, can realize automatic dust vibration, after the filter is clogged, it will automatically vibrate the dust to clean.
42L large capacity, primary filtration large dust collection bag is easier to stretch.

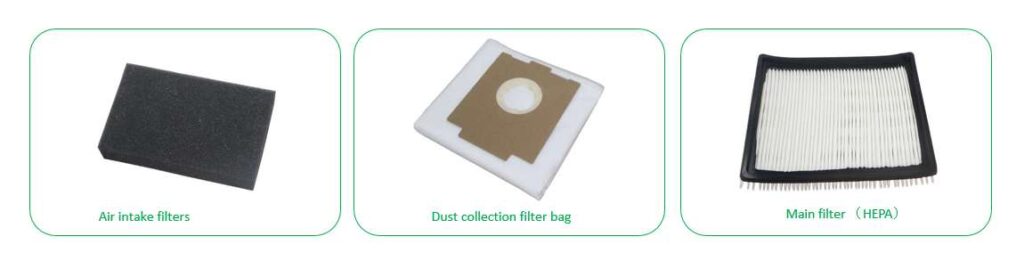

Below consumables, regularly maintained and replaced on time (separate purchase by owner)
